Under Crank Shearing Machine

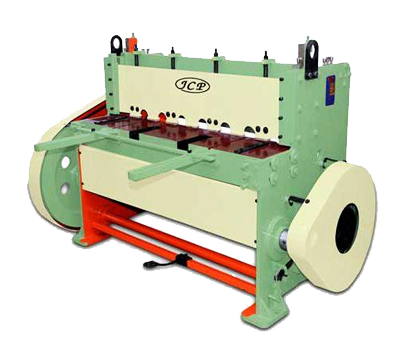

Steel Body Under Crank Shearing Machine.

Frame :

The Frame is fabricated from steel plates of is 226 Grade. The frame is designed to take heavy loads. The interlocked design put the direct support to frame. Thus frame is strain free and eliminates welds at load supports. Thus the Accuracy of The Machine is never disturbed.

Upper Beam :

Upper beam is fabricated with thick M.S. Plate. It is Heavily ribbed from behind and is stress relived. The top blade is fitted at its accurately machined seat. Its sliding surface are machined and hand scrapped for smooth travel and sustained accurately.

Guide Ways :

Accurately machined guide ways keep the beam in its bearing throughout the stroke. A taper wedge is provide to compensate for the wear and to facilitate quick setting of the blade clearance.
