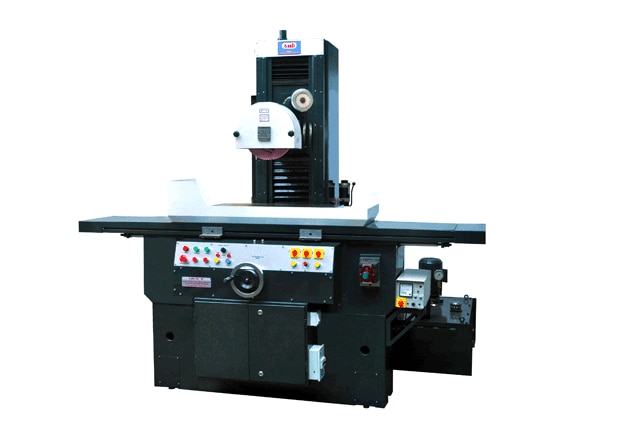

Column Type Surface Grinding Machine

The Column Type Surface Grinding Machine is a precision grinding solution designed for accurate surface finishing and high-quality machining of metal components. Valaba Machine Tools can offer this type of machine for engineering workshops, manufacturing units, fabrication industries, tool rooms, and precision machining applications.

The machine combines a rigid heavy-duty cast-iron structure, precision grinding head, hydraulic table movement, and infinitely variable cross-feed to achieve consistent accuracy and surface finish. The compact construction and vibration-free operation make it suitable for demanding industrial grinding requirements.

Models Available

The Column Type Surface Grinding Machine is available in two configurations:

Aarti H-3 – Maximum table size: 750 × 300 mm

Aarti H-4 – Maximum table size: 1000 × 300 mm

Both models are designed with hydraulic table movement and a convenient wheel-dressing mechanism for efficient grinding operations.

Key Features & Benefits

Heavy-Duty Cast Iron Construction

The machine is constructed from high-grade cast iron, providing rigidity and stability during grinding operations. The base is hand-scraped to achieve fine tolerances and accuracy.

Precision Grinding Head

The grinding wheel spindle is hardened and ground and supported by precision angular-contact bearings. The spindle drive uses a flange-mounted motor with flexible coupling for smooth operation.

V & Flat Guideways

The reciprocating table incorporates V & Flat guideways lined with Turcite-B, helping provide smooth table movement and reliable long-term performance.

Hydraulic Table Movement

A separate hydraulic power pack with a 24 V DC pilot-operated solenoid valve provides controlled table operation and smooth reversal.

Infinitely Variable Cross Feed

The cross feed operates through a lead screw and nut. Automatic cross feed is provided at table reversal, while an electronic control system allows the feed to be adjusted for the desired accuracy and surface finish.

Vibration-Free Operation

The rigid construction and controlled hydraulic movement are designed to support stable grinding and consistent finishing performance.

Standard Accessories

The machine can be supplied with:

Permanent magnetic chuck

Balancing stand and mandrel

Diamond dresser with holder

Lubrication pump

Tool kit

Grinding wheel with flange

Electric control panel

Hydraulic system

Optional Accessories

Coolant equipment

Machine lamp

Wheel flange unit

Applications

Column Type Surface Grinding Machines are suitable for:

Precision surface grinding

Metal component finishing

Engineering workshops

Tool rooms

Manufacturing units

Fabrication industries

Industrial component machining

Precision production applications

General surface grinding requirements
