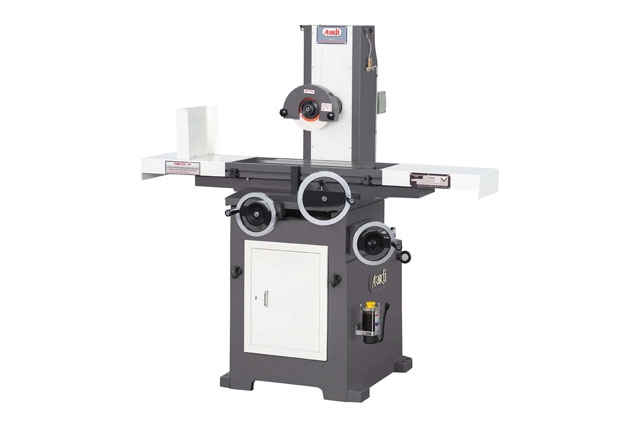

Manual Surface Grinding Machine

The Manual Surface Grinding Machine is a precision grinding solution designed for accurate surface finishing and machining of metal components. Valaba Machine Tools offers reliable surface grinding solutions suitable for engineering workshops, tool rooms, manufacturing units, maintenance departments, and general industrial applications.

The machine is built using heavy-duty cast iron, with hand-scraped V-ways and flat ways designed to provide smooth table movement and high accuracy. Its precision grinding wheel spindle runs on angular-contact bearings and is driven through a flexible coupling for dependable, long-lasting operation.

Key Features & Benefits

Heavy-Duty Cast Iron Construction for strength, rigidity, and stability.

Hand-Scraped V-Ways & Flat Ways designed for smooth table movement and high accuracy.

Precision Grinding Wheel Spindle hardened and ground for reliable grinding performance.

Angular Contact Bearings support smooth spindle operation and long service life.

Flexible Coupling Drive helps ensure dependable spindle operation.

Precision Microfeed System for controlled and accurate vertical grinding adjustments.

Low Maintenance Design for convenient routine operation.

Sturdy & Durable Construction suitable for demanding workshop environments.

Hassle-Free Functioning for efficient precision grinding operations.

Precision Microfeed System

The vertical grinding wheel slide incorporates a precision microfeed arrangement. The vertical wheel dial has a least count of 0.01 mm, while the microfeed system provides fine adjustment for controlled grinding operations.

Standard Accessories

Standard accessories include:

Balancing Stand & Mandrel

Diamond Dresser with Holder

Wheel Puller

Lubrication Pump

Tool Kit

Electric Motor with Starter

Grinding Wheel with Flange

Magnet Chuck Lock Piece

Optional Accessories

Depending on the application, optional equipment can include:

Permanent Magnetic Chuck

Coolant Equipment

Machine Lamp

Wheel Flange Unit

DRO

Dust Collector

Electric Magnetic Chuck

Coolant System with Magnetic Separator & Paper Band Filter

Radius & Angular Wheel Truing Attachment

Plain, Sine, Swivel & Universal Vices

LM Guideways

Other customized solutions

Applications

Manual surface grinding machines are suitable for:

Precision surface grinding

Metal component finishing

Tool room applications

Engineering workshops

Manufacturing units

Maintenance departments

Die and mould components

General industrial machining

Precision component production

Why Choose Valaba Machine Tools?

With 16+ years of industry experience, Valaba Machine Tools provides reliable industrial machinery supported by technical guidance, competitive pricing, quick delivery, and dependable after-sales service. We help customers select the right surface grinding machine based on their component size, accuracy requirements, grinding application, production needs, and workshop setup.
